Min. Order:1 Piece/Pieces
Size: 10.1 inch
Brightness: 1000 nits
Contrast Ratio: 1000:1
Resolution: 1280*800
Operating Temperature: -10 - 50°C
Smallarancin girman fayil ɗin waje, 10.1 inch TFT 1000 nits lcd Mai saka idanu. Za'a iya ganin abun ciki akan allon za'a iya gani a cikin yanayin da aka gani, ana iya amfani dashi tare da kowane nau'in biyan kuɗi, injunan sayar da kai da sauran tashoshin uwar garken kai.
Idan kuna da sauran buƙatu, tuntuɓi mu, za mu tsara mafi dacewa da mafi dacewa nuni mafi dacewa dangane da bukatunku.

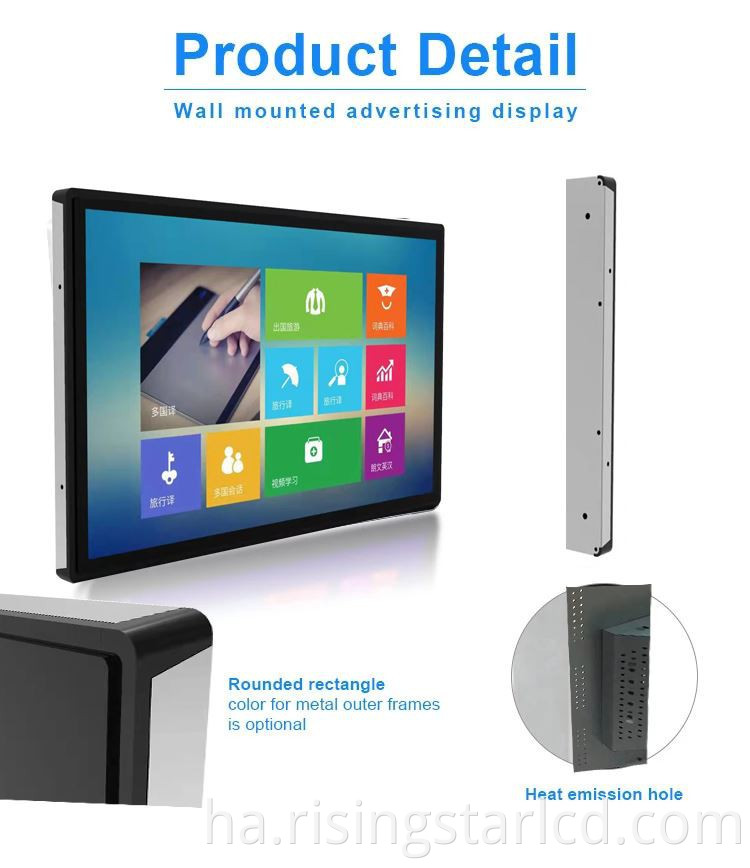

Ya sanya waje na waje yana nuna fasalin samfurin
10.1 "tft lcd panel
1280 * 800 ƙuduri
A waje da aka yi amfani da shi, haske daga 500Nits zuwa 1500 nits
Capacitive taɓawa, an rufe shi da gilashin tabo 2m mai ƙarfi da abin dogara ga tabbacin Vandal
VGA HDMI DVI USB
Babban aikin babban aikin, 7/24 ci gaba da aiki
Tallafawa 12-24v Warfilage
Ultra-na bakin ciki gaban Bezel 3mm, da kyau don hauhawar hawa
Gaban kwamitin ip55
Yawan zafin jiki na fadi: -10 - 50 ° C
|
Product specification |
|
|
LCD panel |
|
|
Panel size |
10.1" |
|
Resolution |
1280*800 or 1024*600 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits (can be customized) |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows ,HDMI, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12-24V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, Silver or customized |
|
VESA mounting |
75x75mm/100x100mm |
|
IP grade |
Front panel IP55 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 50°C, storage: -20 to 80°C |
|
Relative humidity |
operating: -5% to 95%, storage: -5% to 95% |
|
Packing Details |
|
|
Gross weight |
about 4kg |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, 3C, RoHS |
