1000 nits lcd module tare da direba direba, girman girman 13.3inch, wannan module mai launi ne matrix lcd module hade da oxide (na bakin ruwa transistor). An tsara shi daga kwamiti na TFD-LCD, Wajen ICT, CIGABA DA IYALIS CIGABA DA IYALISTINGURET.RESUWoune 1980 * 1080.
A cikin 1000nits LCD module, led wani abin rufe fuska, matattarar launi don kyakkyawan hoto mai kyau, yin wannan samfurin mafi kyawun aikace-aikacen aikace-aikacen kwamfuta.

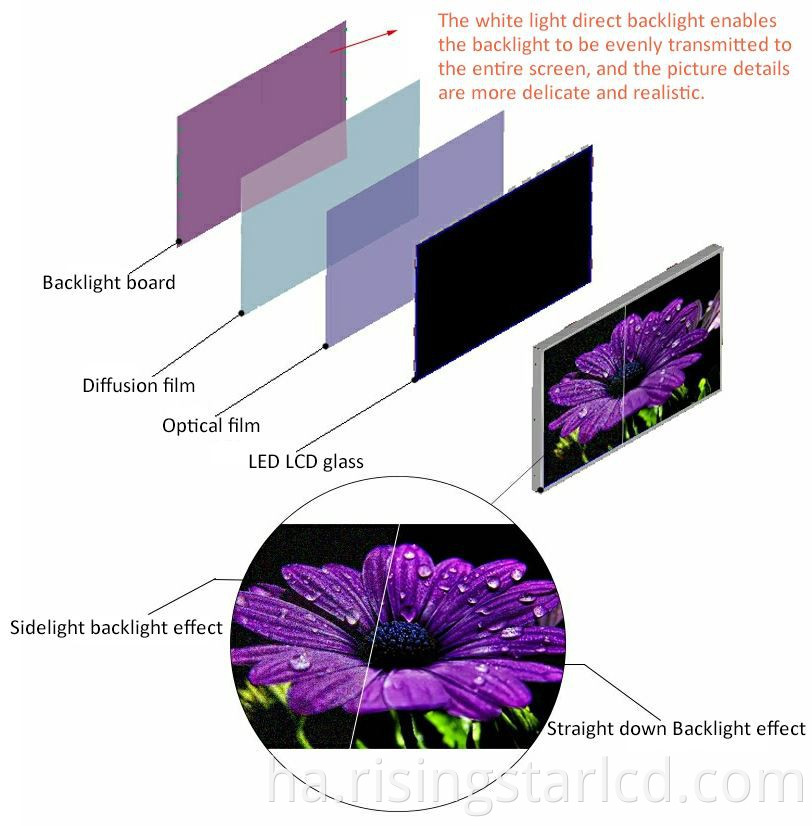

LED Backlighle fitaccen ƙarfin kuzari ne mafi inganci kuma yana samar da hoto mai haske fiye da tsarin aikin cds na LEDs; saboda tsarin aiki yana amfani da tsarin da aka keɓe don LEDS fitattun abubuwan fitsari, wanda yake Ba wai kawai ƙarin makamashi ne mai kyau ba fiye da abin ƙyama na CCFL na gargajiya, yana da matukar haske.
| Size | 13.3inch |
| Panel item | RS133NET-N10 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1920*1080 |
| brightness | 1000cd/m2 |
| Constrast Ratio | 800：1 |
| Response Time | 25ms |
| View angle | 89/89/89/89 |
| View area | 295.07*166.68mm(H*V) |
| Dispaly area | 293.472*165.078mm(H*V) |
| Outline Size | 309.7*184.1*10.1mm(H*V*D) |
| Signal Type | LVDS,30Pin |
| Working freqyency | 60Hz |
| Working temperature | 0- 70ﾟC |
| Storage Temperature | -25- +65.0ﾟC |
| Display ratio | 16:9 |
| Display color | 16.7m |
| Nominal Input Voltage | 3.3V |
| Surface Treatment | Haze |
| Weight |
0.5kgs |
