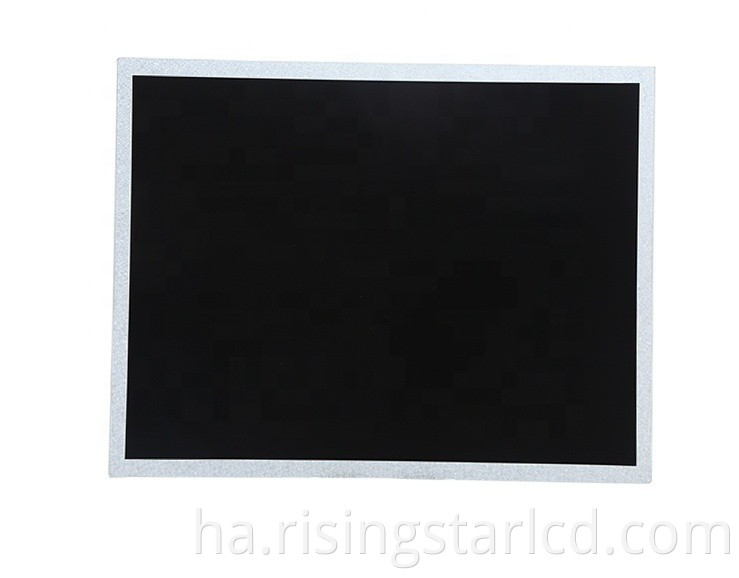

15 "Babban haske LCD Panel 1500cd / M2
1 Gabatarwa
Manya ce mai laushi na zamani mai amfani (TFT) nuni na crystal na ruwa (LCD) wanda ke amfani da silpon sililon TFT azaman na'urar sauyawa. An hada shi da TFF LCD LCD, tsarin madafin, shafi direba da kebul da ke tattarawa. Wannan TFT LCD yana da yanki na 15.0-inch inch inch inch inch mai amfani tare da ƙuduri (1024 a kwance a tsaye ta hanyar 768 a tsaye pixels tsintsiya).
2 fasali
15.0 "TFF LCD Panel
Tsarin hasken wuta
Taimako na 1024x768 pixels ƙuduri
Mai jituwa tare da matsayin Rohs
|
Size |
15inch |
|
Resolution |
1024*768 |
|
Pixel Pitch (H x V) |
0.297 x 0.297mm |
|
Pixel Arrangement |
R.G.B. Vertical Stripe |
|
Display Mode |
Normally White |
|
Brightness(nits) |
1000-1500 |
|
Contrast Ratio |
800:1 |
| Input Voltage | 3.3V |
| View Angle(L/R/U/D) | 80/80/80/80 |
| Response Time(ms) | 16ms |
| Optical mode | TN |
| Operating Temperature | -20-70° |
| Storage Temperature | -30-80° |
| Interface | LVDS/8-bit |
| Lamp type | LED |
| LED Life Time(Hrs) | 30,000Hours |
| Active Area(mm,H*V) | 304.13*228.10 |
| Outline Dimension | 326.50*253.50*12.00 |
|
Weight |
960g |
|
Support Color |
16.2M |
|
Optimum Viewing Direction |
6 o’clock |
|
Surface Treatment |
Anti-glare, Hard-Coating (3H) |
|
Authentication |
ROSH/UL |
| Size | 15inch |
| Panel item | RS150NET-N15 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1024*768 |
| brightness | 1500cd/m2 |
| Constrast Ratio | 800：1 |
| View angle | 80/80/80/80 |
| View area | 313.55*2378.25mm(H*V) |
| Dispaly area | 304.128*228.096mm(H*V) |
| Outline Size | 326.5*253.5*10mm(H*V*D) |
| Signal Type | LVDS |
| Working freqyency | 60Hz |
| Working temperature | 0- 65.0ﾟC |
| Storage Temperature | -20- +65.0ﾟC |
| Backlight Type | WLED |
| Display color | 16.7m |
| Surface Treatment | Haze ,Hard coating(3H) |
| Drive-screen Voltage | 3.3V |
| Backlight Power Consumption | 13w |
| Weight | 1kgs |
Schs mai zafi: 15 Babban haske LCD Panel 1500Cd, Kasuwanci, Kasuwanci, Fasikanci LCD, a waje, mai haske LCD, a waje. Nunin LCD
15INCH 1000NITEITY LCD
Allon Smart Dubki a waje na LCD
