Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Alamar: Tasar
Yawan aiki: 189k
Wurin Bayani: Shenzhen
Certificate: ISO9001/CE/ROSH/UL/FCC
15.4 "Babban haske TFF LCD, wannan lcd Panel mai haske da 1000 nits, ana iya karanta hasken LCDI tare da Chimei Innolux na Chimei.
Kowane haske na hasken wuta na waje na Highway launi iri-iri ne daban-daban daidaitaccen daidaitaccen daidaitawa; wannan ba wai kawai yana samar da madaidaicin hasken wuta ba. Za'a iya zaɓar nits 500-1000, daidaituwa sama da 90%.
15.4 "Babban haske TFF panel, an sanye shi da sled bayan rashi, zazzabi mai gudana: -30 ° C, da juriya na 80 ° C, da juriya na 80 ne (14.7m :..musm.this samfurin wata babbar Panel, Haske Life 50k awoyi, Portal Port

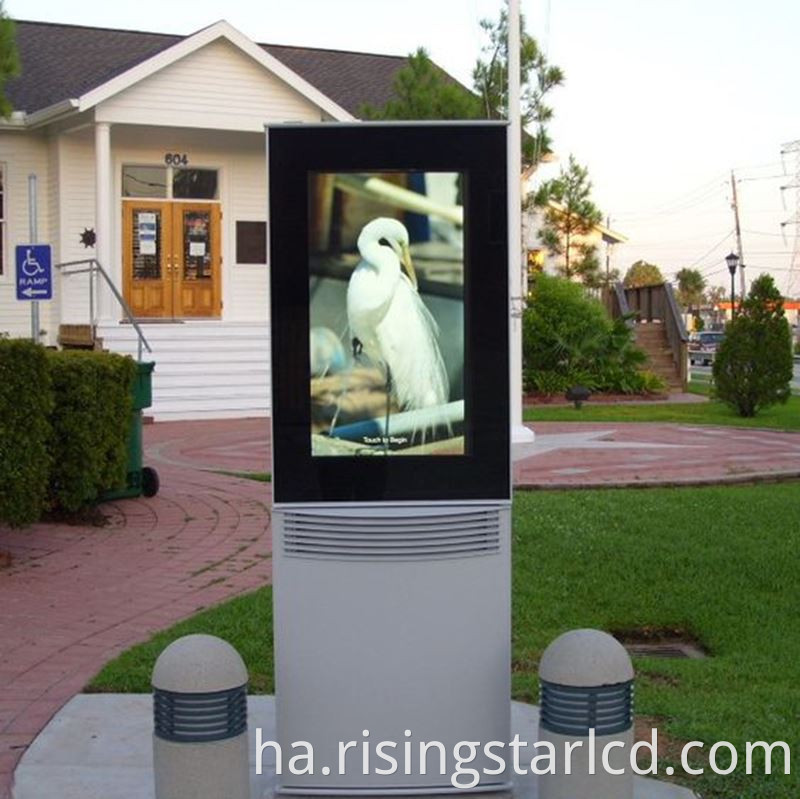

15.4 "ana amfani da haske sosai a cikin nuna ikon sarrafa masana'antu, katunan aji na lantarki, sabon cajin bangarori, bangarorin aikin na waje, da sauransu.
| Product size | 15.4 inch | Type | a-Si TFT-LCD |
| Pixel Format | 1280(RGB)×800[WUXGA] 98PPI | Configuration | RGB Vertical Stripe |
| Active Area | 334.5(H)×210.3(V) mm | Outline Dim. | 352(H)×230(V) ×9.5(D) mm |
| Viewing Angle | 80/80/70/70 (Min.)(CR≥10) | Treatment | Glare , Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 5/11(Typ.)(Tr/Td) |
| Support Color | 16.2M 56% NTSC | Light Source | WLED , 50K hours , With LED Driver |
| Weight | 880g | Designed For | Outdoor High Brightness Automotive Display |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | LVDS(1 ch,6/8-bit) , 30pins | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
Sch. Garkuwa
15.4Ch 1000 nits waje TFT LCD
15INCH 1000NITEITY LCD
