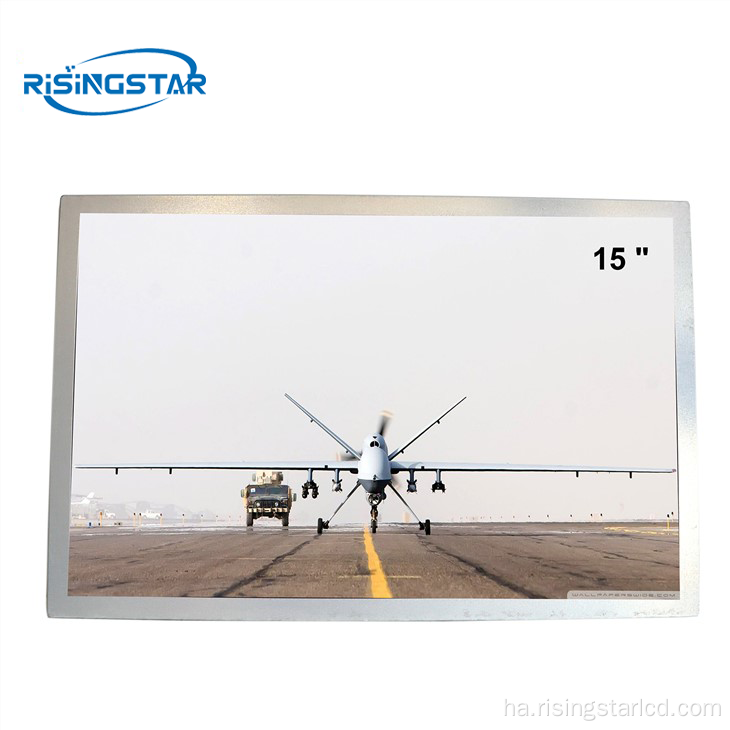

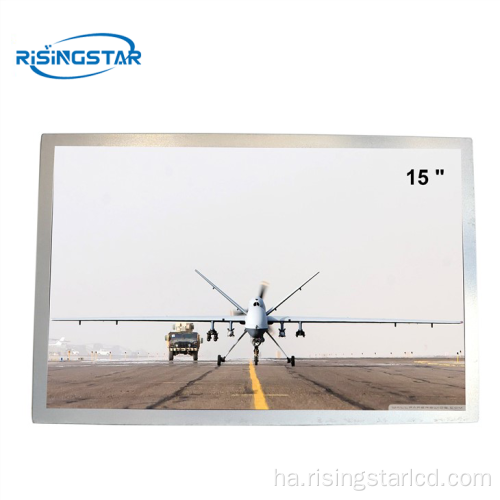

Model No.: G150XTN06.B
HD allon yana cike da ingancin hoto.
Jikin nuna yana daukar sabon panel ruwa na LCD, tare da haske mai haske 800nit da kuma 24 * 7 Allwarawar wasan kwaikwayon don samar da isar da abun ciki mai sauƙi.
Muna ba da 500-5000nit Edultation mai haske don madaidaicin ikon haske a kowane yanki.
| brand | AUO | Model name | G150XTN06.B |
| size | 15.0" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1024(RGB)×768 (XGA) 85PPI | Pixel configuration | RGB vertical bar |
| Display size | 304.128 × 228.096 (H×V) mm | Appearance of size | 326.5 × 253.5 × 10 (H×V×D) mm |
| Visual size | 311.9 × 236.85 (H×V) mm | Surface treatment | Antireflection processing |
| Brightness(cd/m²) | 800 cd/m² (Typ.) | contrast | 800 : 1 (Typ.) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | 20 pins LVDS (1 ch, 6/8-bit) , terminal | ||
| Maximum rated | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 70 °C |
Tags mai zafi: 15.0 "Auo G150XTN06.b TFF LCD LCD, China, masana'anta, allon dijital, 2000 inci, 2000 nits Ofdotoot TV, 98 inch lcd Allon, 2000nits na nuna alamar talabijin na waje
