Model No.: DJ123IA-01B

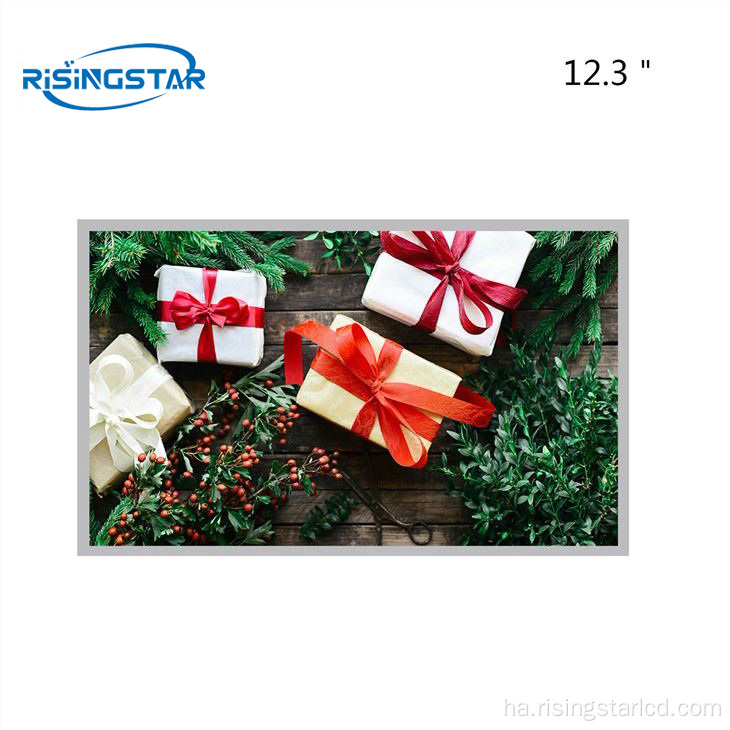

12.3 Inch Inch Dj123A-01B Babban haske 750Nits TFF LCD Kwamitin Sunfita HFD LCD.
1.Sasuwar sarrafa tsarin ta atomatik, daidaita hasken allo na atomatik bisa ga hasken waje gwargwadon haske a waje.
2.ADOPT fitila shigo da leken kafa wanda yake ƙarancin iko, babban mai haske mai haske, da ƙarancin iko.
3.Le direban da aka ruwaito ta hanyar ƙarancin ƙarfin lantarki, amintacce kuma abin dogara.
Daidai samfurin: JJ103a-12a, JJ1233a-01j
| brand | Innolux | Model name | DJ123IA-01B |
| size | 12.3 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1920(RGB)×720, 166PPI | Pixel configuration | RGB vertical bar |
| Display Area | 292.608×109.728(H×V)mm | Surface treatment | / |
| Brightness(cd/m²) | 750 cd/m² (Typ.)or customized | Contrast Ratio | 1000:1 (Typ.) [transmission] |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Outline dimension | 310×129.1×15.5mm(H×V×D) |
| Signal interface | LVDS (2 ch, 8-bit) , 50 pins ,terminal |
|
|
| work environment | Storage temperature: -40 ~ 90 °C Working temperature: -30 ~ 85 °C |
|
|
Sch. Allon waje, hasken rana wanda ake kira LCD , LCD Panel, LCD Module, Nunin Haske.
