Model No.: EV101WXM-N81

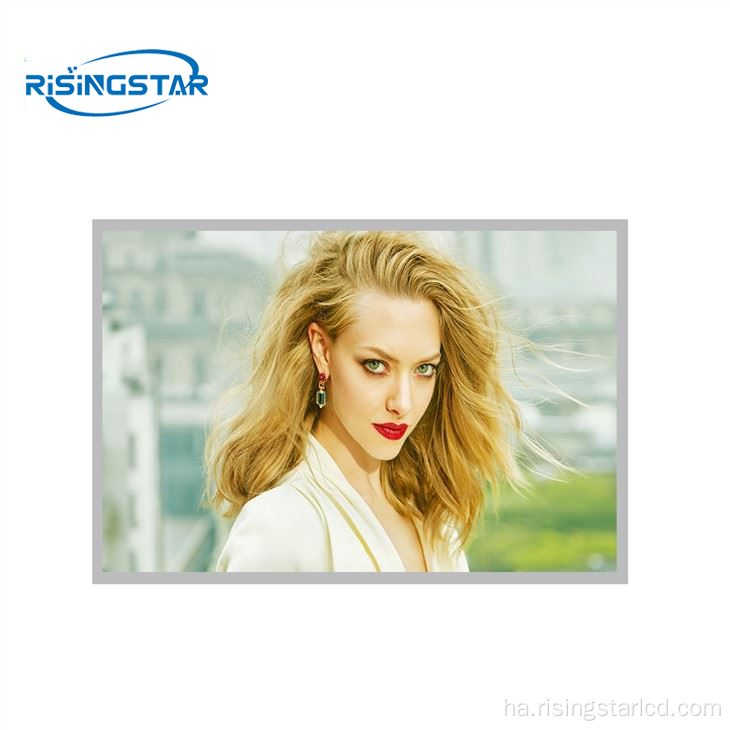

EV101WXM-N81 shine lCD na 10.1-inch lcd ta amfani da fasahar LCD ta-Si. An sanye take da wutar bayan haske, gami da direban direba mai saukar ungulu, ba taɓa. Nuna ƙuduri shine 1280 (RGB) × 800 (WXGA), Haske sashi shine 16:10 (nisa) a cikin RGB tsaye a tsaye. Girman yankinsa ya zama 216.96 × 135.6 (nisa (fadi ne) 219.4 × 159.9 (Tyw.). Dangane da bayyanar da ba da labari, wannan samfurin yana amfani da tushen shigarwar da aka watsa tare da rayuwar 50k awanni, gami da direba mai jagora. EV101WXM-N81 yana amfani da LVDs (1 ch, mai alamar siginar aiki, filayen 20, yana amfani da haɗin maɓallin allo, na amfani da ƙarfin lantarki shine 3.3V.). Matsayi na al'ada a tsaye mai ban sha'awa FV NE 60Hz. Yana aiki da AT -20 ° C zuwa 70 ° C da adana AT -30 ° C zuwa 80 ° C. Dangane da hasken rana LED, Rayuwa ta fi sa'o'i 50,000.
R-Star da aka samo asali ne daga Shenzhen, China, mu ne ƙwararrun ƙwararrun ƙwararrun Modules, ciki har da 120 inch Haskaka LCD, Cikakken Haske LCD, waje Haske LCD, mahimmin masana'antu na TFD, ingantacce na lcd da kuma fannonin biyu, lcd mai gefe biyu, high-haske lcd panel. A takaice, tashi yana da fiye da shekaru 5 na babban zane na Module, shekaru 8 da ci gaba, damar sarrafawa, shekaru 10 na manyan kayan samar da kayan abinci mai inganci.
| brand | BOE | Model name | EV101WXM-N81 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800, WXGA, 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96×135.6(H×V)mm | Surface treatment | / |
| Visual size | 233.2×152.9×10.4(H×V×D) mm | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 233.2×152.9×10.4(H×V×D)mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 20 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
Daidai girman samfurin da sigogi sune kamar haka
| brand | BOE | Model name | EV101WUM-N20 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1920(RGB)×1200, WUXGA, 224PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.806×135.504mm(H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600cd/m²(Typ.)or customized | Outline dimension | 229.45×149.22(H×V)mm |
| Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 45 pins | ||
| work environment | Storage temperature: -25 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | AT101WSM-N11-58P0 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×600, WSVGA, 117PPI | Pixel configuration | RGB vertical bar |
| Display Area | 222.72×125.28mm(H×V) | Surface treatment | Fog surface，Hard coating (3H) |
| Visual size | 226×128.6(H×V)mm | Contrast Ratio | 500:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 235×144.9×5.44mm(H×V×D) |
| Viewing Angle | 80/80/60/70(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) , 60 pins , FPC | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | EV101WXM-N82 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 [WXGA] 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96 × 135.6 mm (H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 228.6 ×149.2×6 mm (H×V×D) |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 40 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
